PCT-521 Dual pump Cementing trailer

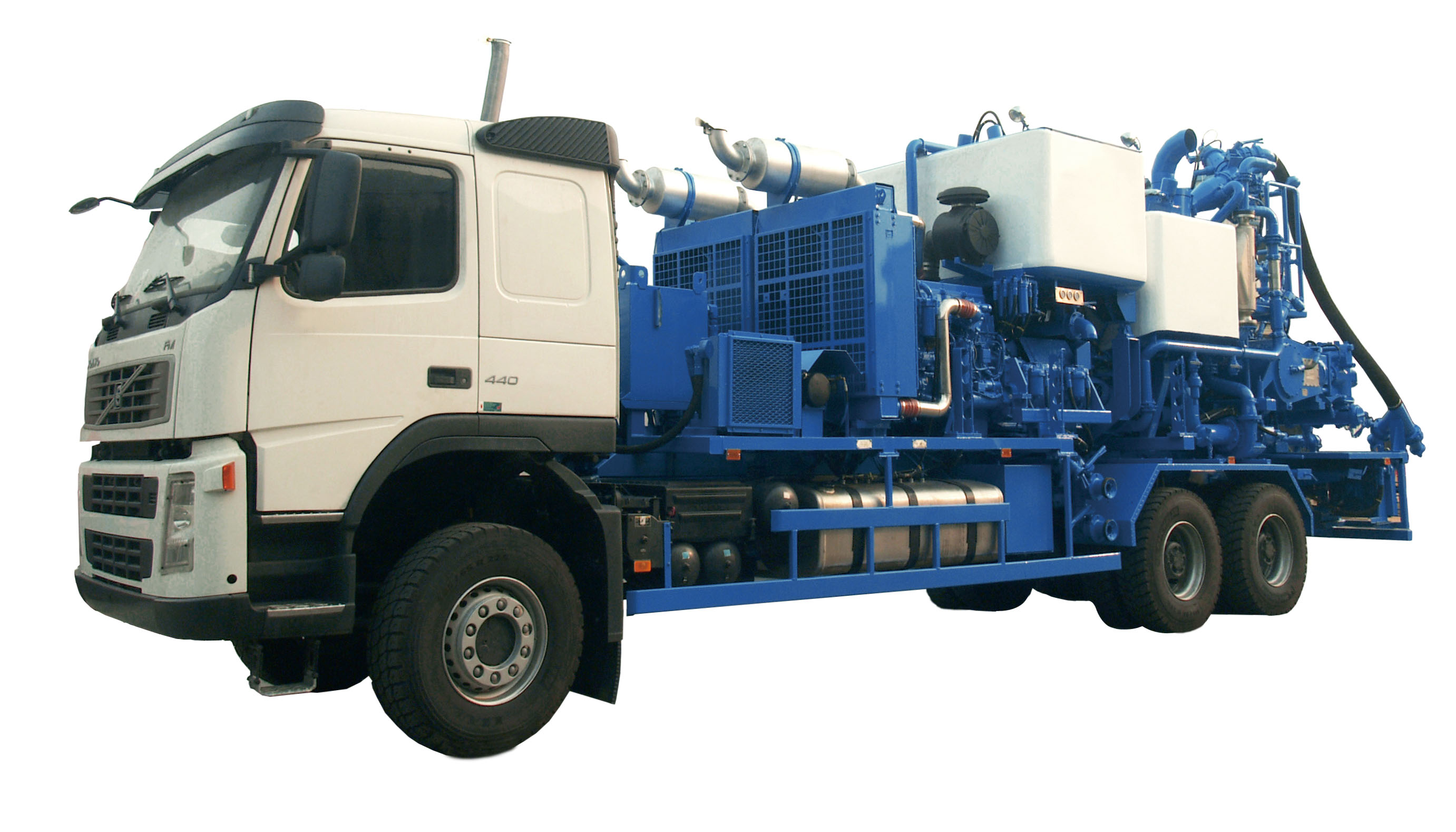

PCT-521 Dual pump Cementing automatic slurry mixing cementing trailer is a kind of trailer-mounted cementing equipment. According to the set density, it can carry out the automatic continuous mixing and pumping the cement slurry under high pressure. Such cementing equipment is mainly used for onshore oilfield cementing operation, acidizing and pressure test.
Specifications
| Chassis |
Benz 4144 8X6 chassis |
| Cementing engine |
CAT C15, 530 HP @ 2100 RPM, 2 sets |
| Cementing transmission |
ALLISION 4700 OFS, 5 forward gears +neutral position, 2 sets |
| Cementing pump |
SJS TPH400 , plunger size: 4.5" and 4", 2 sets |
Three-cylinder plunger pump
| Model |
TPH 400, reciprocating, horizontal, single-action plunger pump |
| Stroke |
8" (203.2mm) |
| Rated pressure | 76.2 MPA @4.5″ plunger; 103.4 MPA @4″plunger |
| Maximum displacement | 1.52 m3/min @4.5″ plunger; 1.20m3/min @4″plunger |
ACM slurry mixing system
| Mixer | High energy re-circulating mixer |
| Mixing water pump | Mission 4X3 X13″; 1.65 m3/min @ 0.78MPa;2 sets |
| Circulating pump/booster pump | SJS 6X5 X11″; 3.70 m3/min @ 0.45MPa; 2 sets |
| Densimeter | Micro Motion non-radioactive densimeter |
Other
| Slurry mixer skid | 7.5BBL |
| Displacement tank | 2 X 10 BBL |
Bulk material system

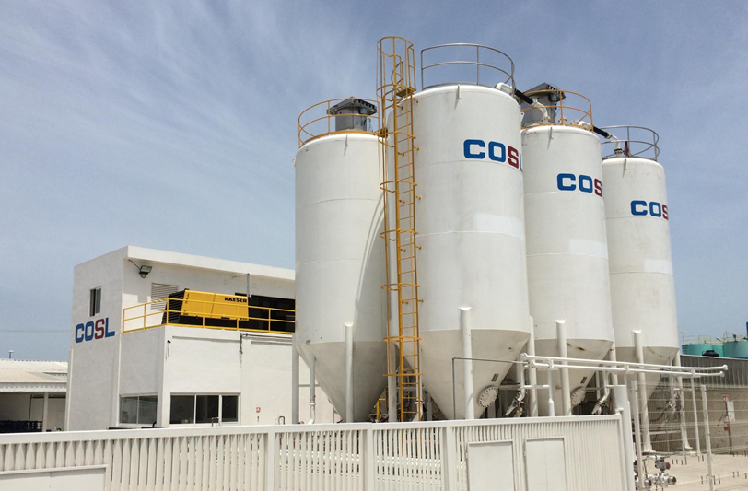

We are providing two configurations of bulk material system, bulk station and mobile bulk plant, based on different service objective and bulk material handling capacity. The regional bulk station provides the handling of bulk material from bag or bulk truck to bulk storage for regional projects,. Various cement blends can be prepared for different jobs. The mobile bulk plant generally integrated of silos, air compressor, air dryer, cutting bottle and pipeline system. It may be assembled according to the specific field demand. It provides strong mobility and maneuverability, suitable for the onshore field operations.
