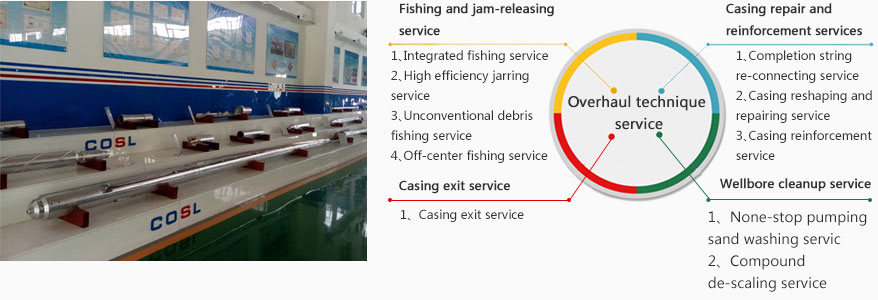

COSL obtained techniques of fishing, wellbore cleanup, repairment and reinforcement of casing, and casing exit after development of more than 30 years; occupied a leading position in offshore workover market of China; complete logistic team and technique team, including 15 experts having more than 20 years of experiences.
Integrated fishing service |
Well-established integrated fishing service provide series of compound techniques of high controllability, low safety risk and high efficiency, via optimization and reassemble of wash-over, washing, cutting and fishing tools and strings.
Serviced more than 240 wells in China offshore oilfield.

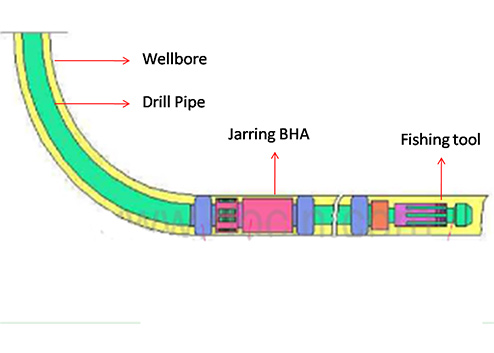

High efficiency jarring service |
Target on different well conditions and equipments, provide high efficiency jarring service which is safer, more effective and excellent quality via multiple plans for jarring and jam-releasing.
Name | Well condition | Applied equipment | Casing applied in |
Full-hydraulic drilling jar | Medium and small size directional wells | High load equipment | 4"~13-3/8" |
Mechanical drilling jar | Medium and small size directional wells | High load equipment | 7"~20" |
High-frequency hydraulic drilling jar | Horizontal wells | Coiled-tubing, low load equipment | 4-1/2"~20" |
Hydraulic thruster | Horizontal wells | Coiled-tubing, low load equipment | 5-1/2"~9-5/8" |
Serviced over 100 wells in China offshore oilfield.
Unconventional debris fishing service |

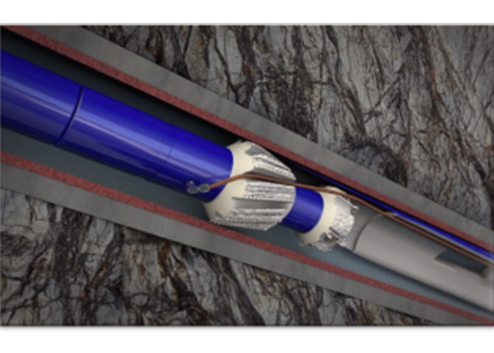

For ESP fault falling, power cable, cable shield and other small pieces falling, series of special tools have been adopted, and milling and fishing conducted all together. Thus unconventional debris fishing service could be achieved in a very short time.
Applied over 20 wells in China offshore oilfield.

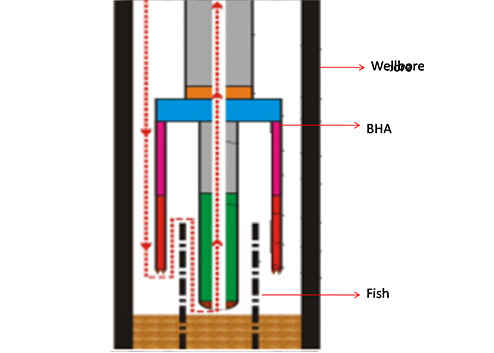

Off-center fishing service |
Normal fishing tool couldn’t deal the off-center fish because of hard to engage. COSL provide off-center fishing service by using special manufactured off-center centralizer to carry out reengage and fishing job.
None-stop pumping sand washing service |
By using purpose-built circulation subs, sand washing operation could be continuously without stop pump while making up joints or stands. So the risk of pipe stuck can be great reduced and sand washing service can be more effective and safer.
Applied more than 10 wells in China offshore oilfield, washing sand up to 300m in one trip.
Compound de-scaling service |
By optimization different kinds of tools, i.e. Magnetic junk sub, de-scaling sleeve, de-scaling mill and rotary scraper, etc, compound de-scaling service provides a high efficiently option for cleaning up the inner-wall of casing or completion string.
Applied over 20 wells in China offshore oilfield, with a maximum processing section up to 3100 m.

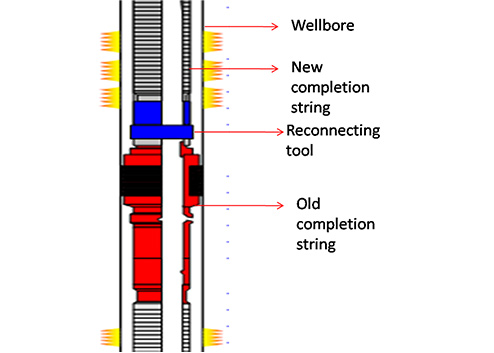

Completion string re-connecting service |
COSL can fish out the failure completion string and re-connecting according the new completion design, which could avoid the fishing job of entire completion string and meet the requirements of production, reduce the risks and costs.
Applied 5 wells in China offshore oilfield with fully content of operation Standard and good seal performance.

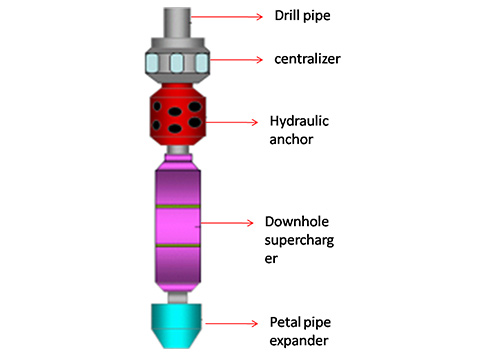

Casing reshaping and repairing service |
This service will be conducted by using many kinds of enlarging and shaping tools, which can reshape the micro-deformation casing, drift the borehole, and includes three kinds: hydraulic-reshaping, mechanical-reshaping, and milling-reshaping.
Applied over 4 wells in China offshore oilfield
Casing reinforcement service |

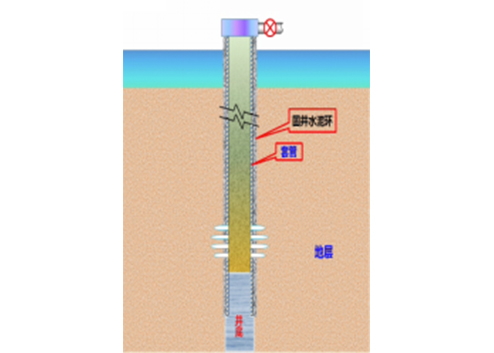

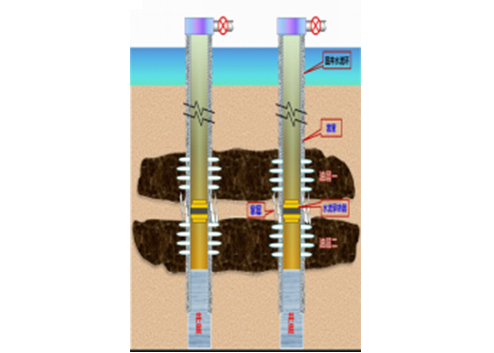

Squeeze cement slurry into annulus of casing from broken point to cement the formation and casing. Casing reinforcement service has two ways to achieve, which is squeezing and circulation squeezing.
Applied over 10 wells in China offshore oilfield; withstand pressure up to 35MPa; block channeling in one trip up to 320 meters.

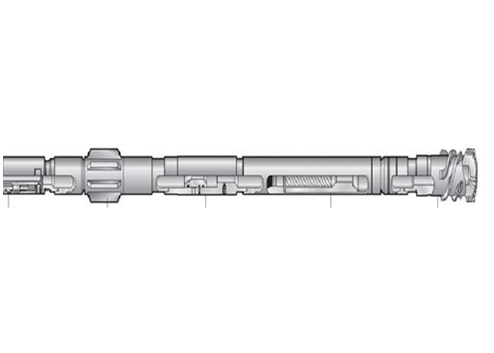

By using one trip casing exit assembly, retrievable hydraulic setting whip-stock, COSL provides effective and excellent quality service with a smooth sidetrack window.
Applied more than 24 wells in China offshore oilfield.
