Applicable for cementing design for land, jack-up platform and
semi-submersible rigsplatform.
Particularly applies to extended reach wells, horizontal
wells, deep wells, deepwater wells, HTHP wells, and lost
circulation wells.

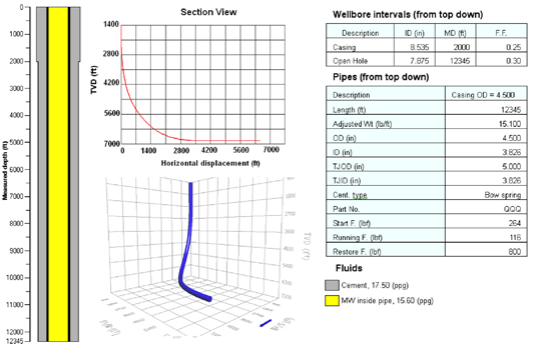

Handling Import and auto-calculating of various formats
variation of trajectory data.
Measured well diameter data can be processed quickly, and the
design of ring capacity and cement slurry can be calculated
according to the measured well diameter data.
Analysis of various flow patterns of fluids.
Analysis of various flow regimes, including Newton model,
Bingham model, power-law model and Herschel Bulkley model.
According to the actual measurement of rotary viscometer, the
software can automatically select the most accurate
rheological model.

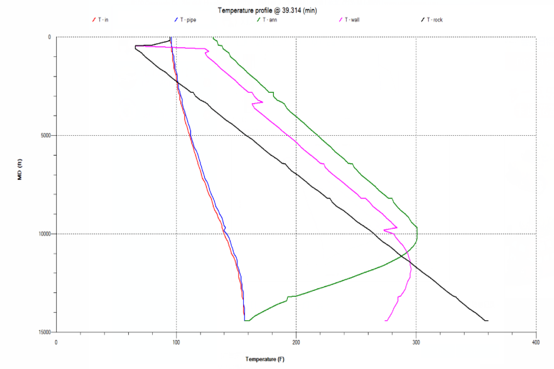

Considering influence of temperature and pressure on the
rheology.
Processing pressure drop calculation with considering the
effect of pipe joint.

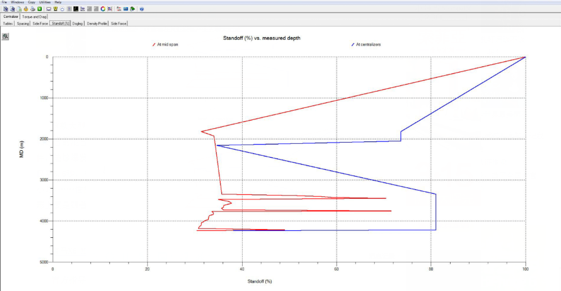

Considering influence of eccentric column on the friction
pressure drop under condition of pressure drop calculation.
This software can provide exact calculation of wellbore
pressure, compared with pore pressure and fracture pressure,
output the three-pressure-profile.

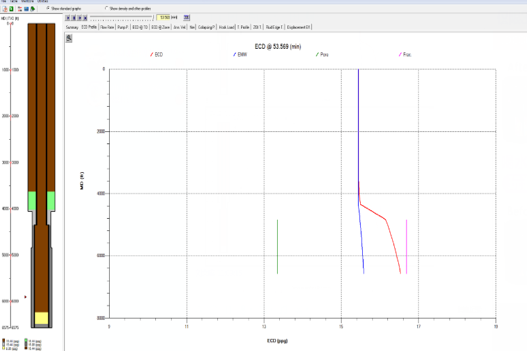

Calculation of pressure or equivalent circulation density
(ECD) with the real time of variation TMD.
Setting up multiple leakage formation, this software can be
used to analyze the formation of wellbore pressure and
fracture pressure.
During cementing process, this software can calculate the
casing load changes due to the change of liquid density by the
casing strength: tensile strength and internal pressure
strength, anti-collapse strength.

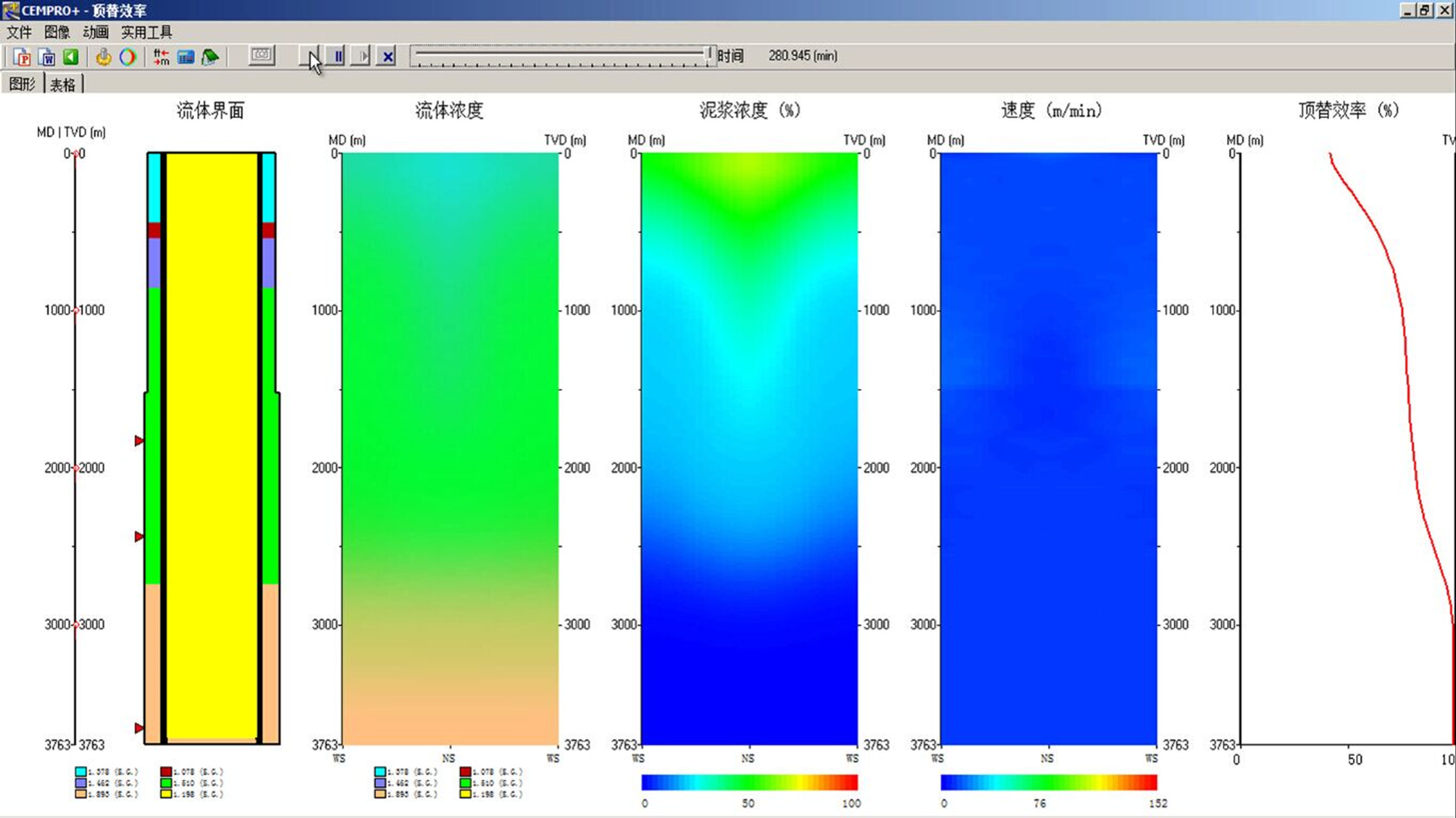

Cementing process can be dynamically simulated, showing the
flow pattern, pressure profile, pump pressure and other
parameters.
