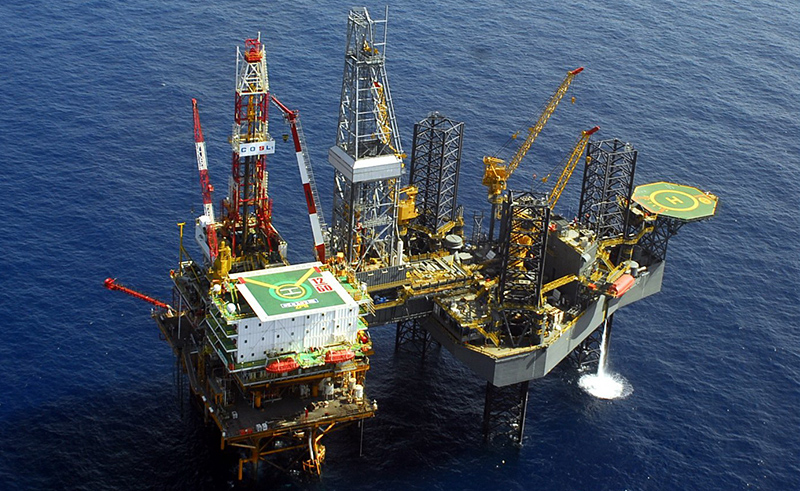

COSL provides the integrated services for modular drilling rigs from designing to constructing, installing, commissioning, maintaining and operating. COSL possesses and operates six modular rigs, all of which are equipped with international mainstream and high-performance drilling devices, with maximum drilling depth of 9000 m. Five modular rigs are currently operating for PEMEX in the Gulf of Mexico and there is another one operating in Bohai Bay, Penglai which is an oilfield in China.
|
|
COSL-1 COSL-2 COSL-3 COSL-4 |
| Main specification |
| Maximum drilling depth |
7000m, 4-1/2" drill pipe | | 6000m, 5"drill pipe |
| Maximum hook load |
450 tons |
| Accommodation |
90 |
| Mud pumps |
gem 1600 horsepower x2 |
| Draw works |
gem JC 70D 2000 horsepower |
|
|
|
|
|
|
|
COSL-7 |
| Main specification |
| Maximum drilling depth |
9000m, 4-1/2" drill pipe | | 7000m,5"drill pipe |
| Maximum hook load |
680 tons |
| Accommodation
|
100 |
| Mud pumps |
gem 2200 horsepower x3 |
| Draw works |
gem JC 90D 3000 horsepower |
|
|
|
|
|
|
|

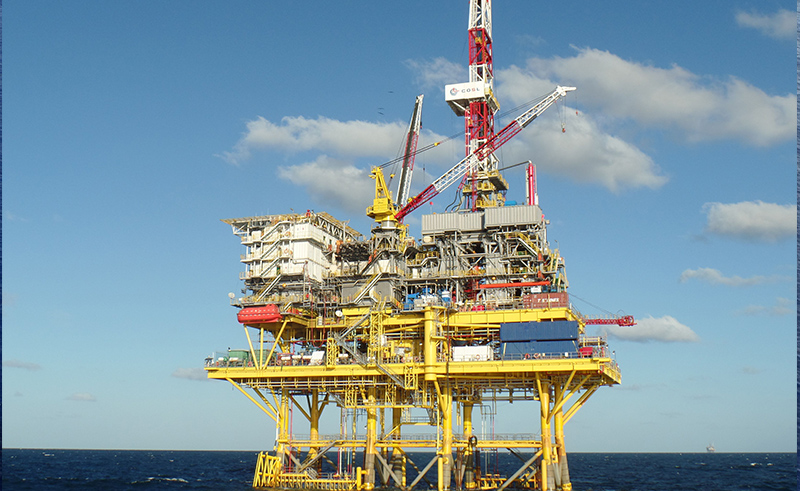

PL19-3A |
| Main specification |
| Maximum drilling depth |
2000m（5"DP） | | Living Quarters | 50 | | DSM Model | L 23.8M,W 15M,H41M | | Accommodation | 90 | | Mast Height | 33m | | Deck Available Space | 97m² |
|
|
|
|
|
|
| | |
