Ground services

We can provide integrated services from operation plan, tool research and development , tools & equipments preparation to on-site technical services for customer, and we have service team with much on-site work experience and high level professional quality.

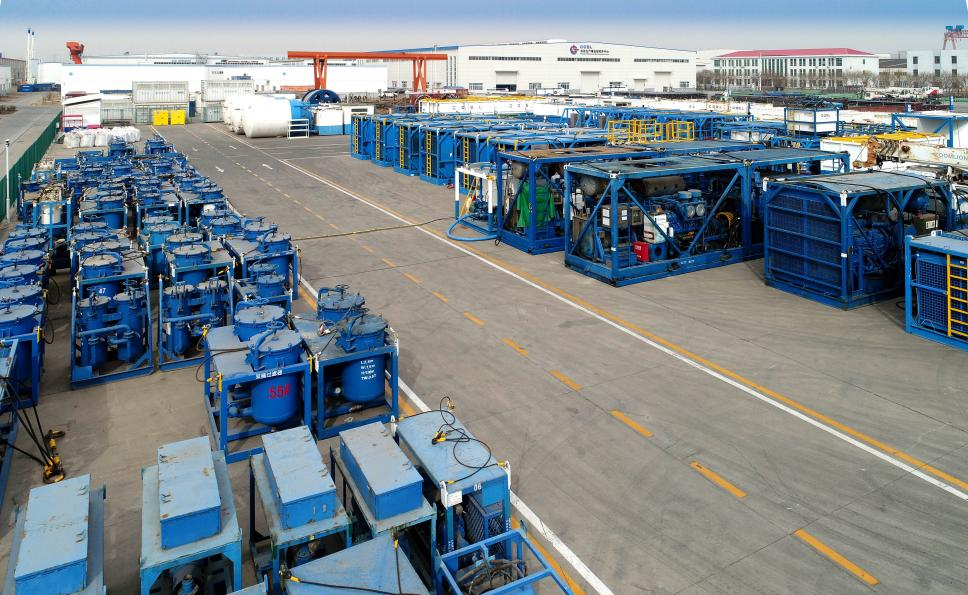

There are currently 104 sets of sand control equipment, including 17 sets of 2000HP sand control pumps, 8 sets of 1000HP sand control pumps, and 54 sets of cartridge filters. The ground pumping service team consists of a total of 153 employees, and the team meets the needs of 4 fracture-pack operations, 3 high-speed water pack operations, 1 tugboat fracture-pack operation, and 26 filtering operation work at the same time, allowing us to respond to customer operation needs in time.

Equipment Specifications

pump type PGS2250 SSH1250 SFS1000A QPA1000 TPA2250
engine HP 2250HP 1100HP 1000HP 1000HP 2000HP
rotate speed 1900RPM 1900RPM 1900RPM 2100RPM 2100RPM
pump head HP 2000HP 975HP 975HP 1000HP 2000HP
pump head pressure 11459Psi 10000Psi 10000Psi 10065Psi 14155psi
Max pumping rate 16BPM 14BPM 14BPM 13BPM 11.76BPM
plunger size 5" x 8" 5" x 8" 5" x 8" 5" x 8" 4.5" x 8"
inlet size 4"4" 4"4" 4"
outlet size3" 3"3" 3"3"
