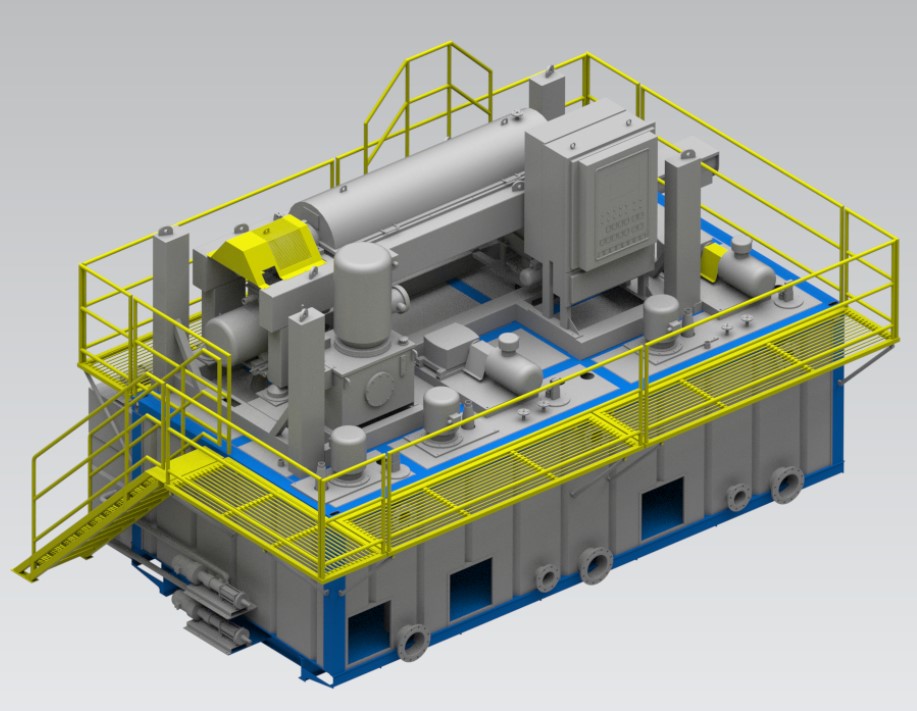

Non-water based drilling fluid recycling technology
By recycling the treatment agent system and purifying centrifugal separation technology, the low-gravity solids content in non-water drilling fluid is effectively reduced, the recycling efficiency of drilling fluid is improved, and costs are effectively saved.
Features:
Selective flocculation effect on low-gravity solids; Reduce the viscosity of drilling fluid and improve the compatibility limit of low-gravity solids;
Effectively reduce the content of low-gravity solids in non-water drilling fluids; Improve the recycling efficiency of nnon-water drilling fluid;
Features:
| Item |
Technical Parameters |
| Treatment capacity |
5 m³/h |
| Installed power |
130 kW |
| Treatment effect |
Density of feed≤1.35g/cm³，density after processing≤1.15g/cm³ |
| Occupied area |
30m2 |
Non-water drilling fluid regeneration treatment technology
Through the deep integration of synergistic catalysts to promote rapid oil phase separation and efficient multi-stage thin-layer desorption technology, the complete separation of solid and liquid in Non-water drilling fluids has been achieved. The separated oil is treated with oil purification agents to remove harmful components, resulting in high-quality recovered oil that meets the requirements for drilling fluids preparation.
Features:
High evaporation efficiency, small footprint; Chemical action promotes better separation of oil-water from solid phase; Directional and efficient removal of odors from recovered oil；high-quality recovered oil that meets the requirements for drilling fluids preparation
Technical parameters
| Item |
Technical Parameters |
| Treatment capacity |
Non-water based drilling fluid 4 m³/d |
| Installed power |
550 kW |
| Treatment effect |
Recycled oil density after processing≤0.85g/cm3, oil content of discharge dry slag＜1% |
| Occupied area |
60m2 |
| Oil recovery percentage |
≥98% |
