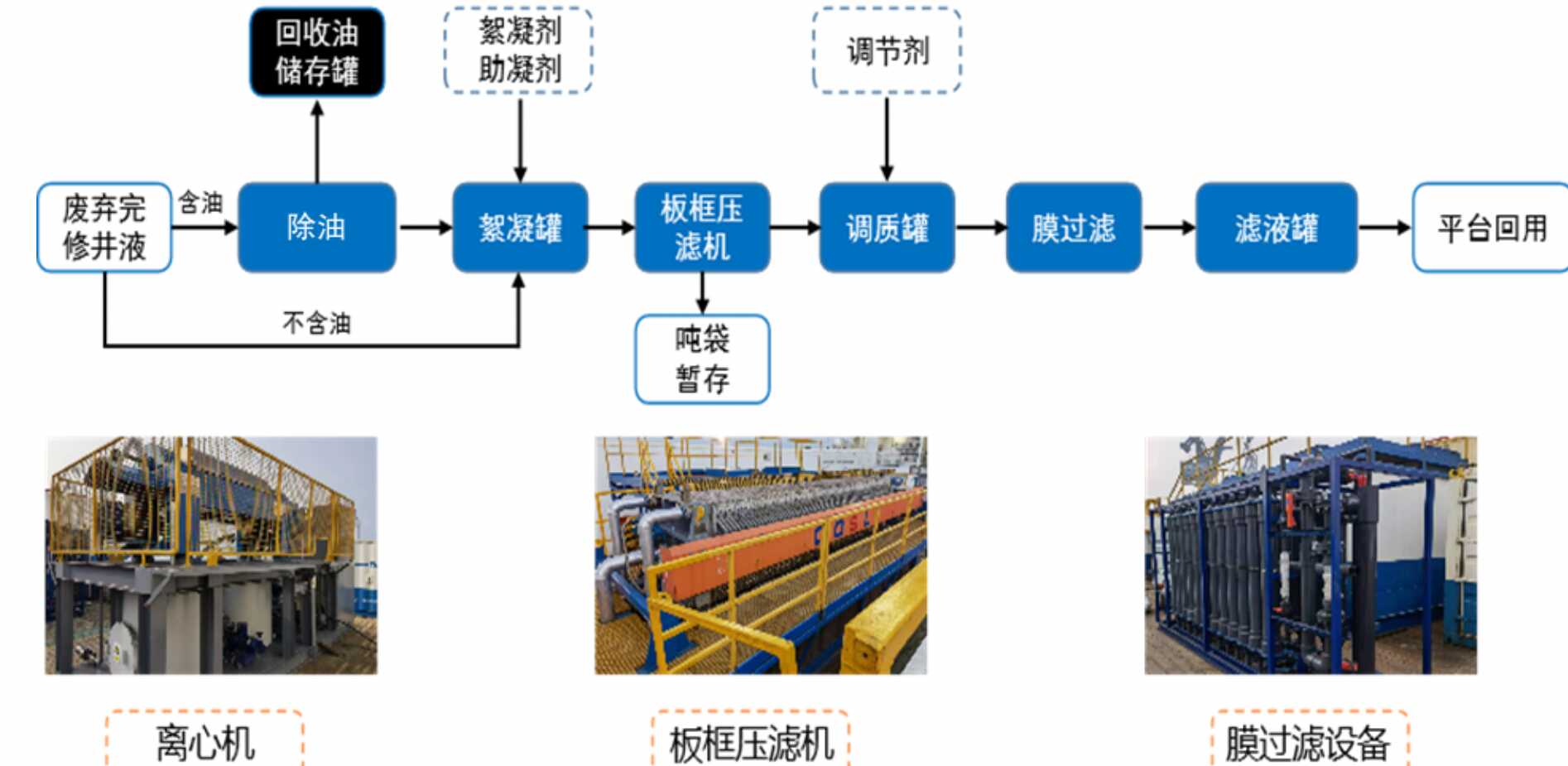

For the environmental friendly treatment of well completion waste, we provide the integrated well completion and workover waste treatment technology of "oil removal + viscosity reduction and destabilization + solid-liquid separation + reuse", and its technical capabilities can cover operations in offshore oilfields and onshore oilfields need.
Features:
In-situ disposal to reduce waste transportation volume and end disposal pressure;
Customized treatment process design, suitable for a variety of well completion fluids systems;
Recovery of liquid phase can be repeated use

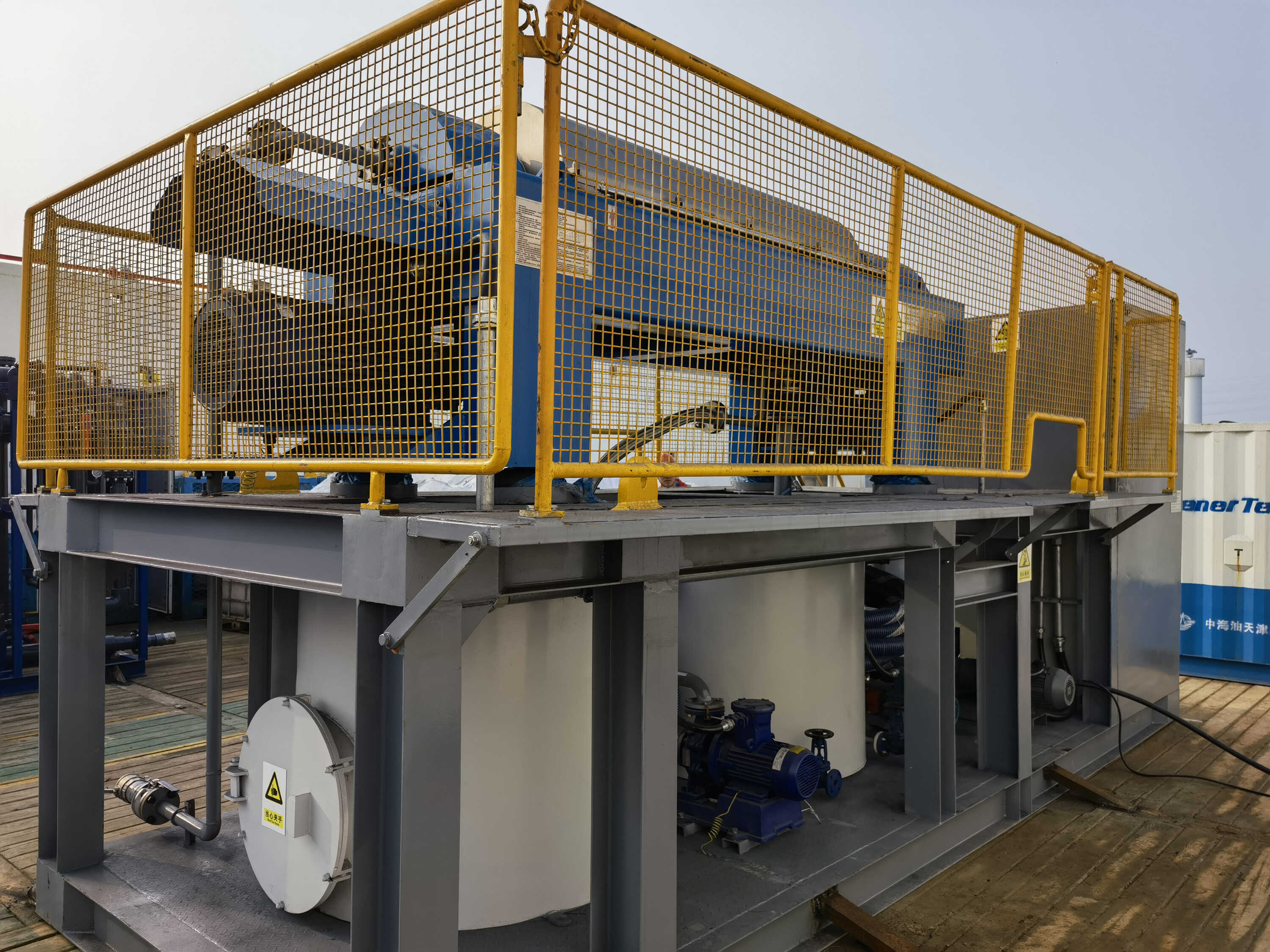

Auxiliary processing equipment - degreasing centrifuge.
The degreasing centrifuge has a high separation factor, which can effectively separate oil and water of oil-containing completion and workover fluids.
Features:
High-efficiency;
Skid mounted;
Run steadily;
Easy to handle;
Technical parameters:
| Item |
Technical Parameters |
| Effective bowl diameter (mm) |
450 |
| Operation bowl length (mm) |
2000 |
| Maximum speed (r/min) |
3800 |
| Operation speed (r/min) |
≤3200 |
| G-Force |
3635 |
| Differential speed (r/min) |
≤50 |
| Maximum capacity (m3/h) |
10 |
| Dimensions: L×W×H (mm) |
3960×1100×1476 |
| Weight (kg) |
4000 |

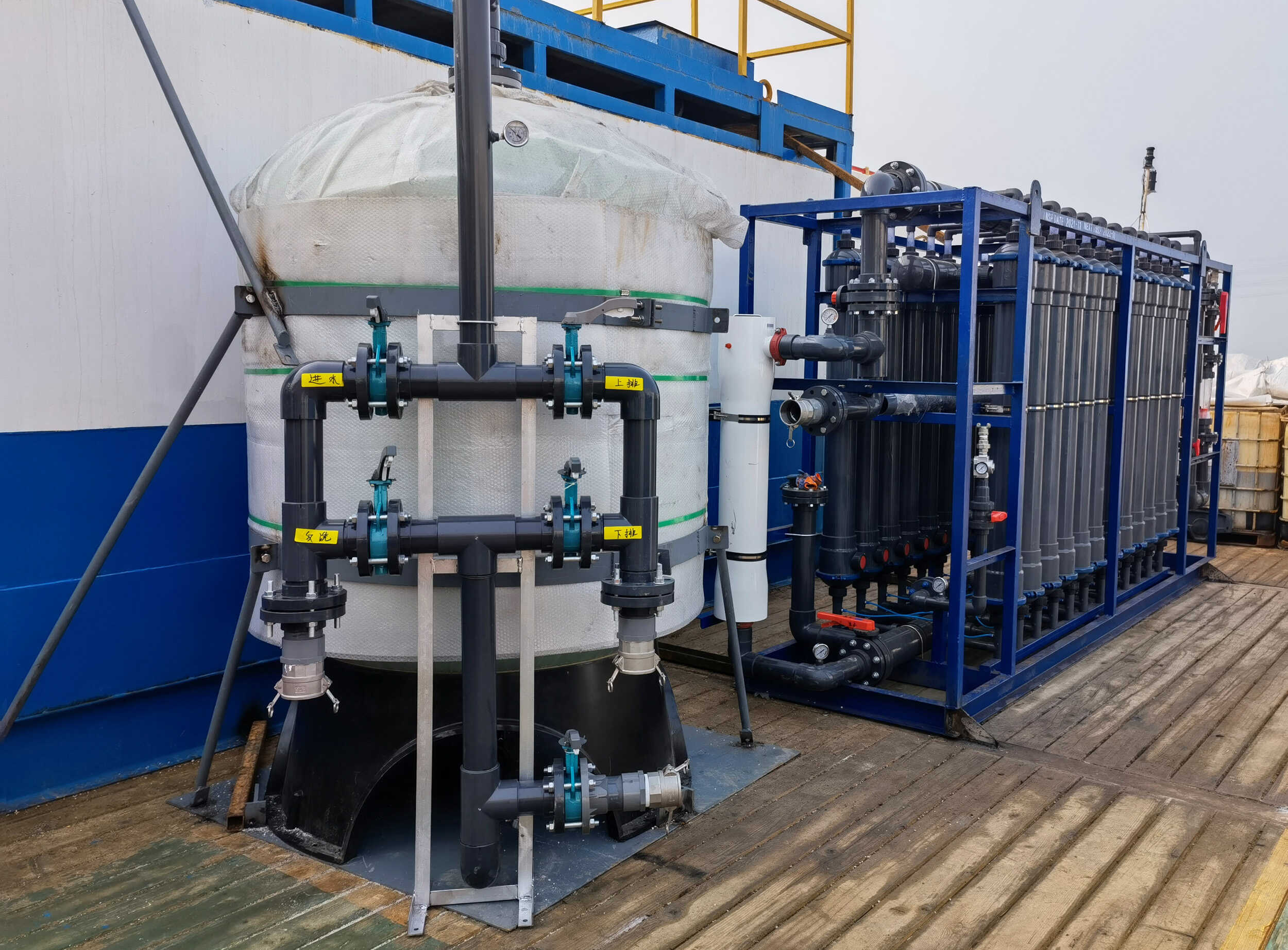

Auxiliary treatment equipment-ultrafiltration equipment
Our techonology harbors ultrafiltration membrane filtration as a three-stage separation equipment, with the features of higher filtering efficiency, stronger anti-pollution ability and easier to clean.
Features:
Acid and alkali resistance, bacteria resistance, oil pollution resistance;
Small occupation;
High mechanical strength, good regeneration performance, long service life;
Technical parameters:
| Item |
Technical Parameters |
| Water flux (m3/h) |
20 |
| Operating pH range |
2-12 |
| Operating temperature (℃) |
1-45 |
| Maximum inflow pressure (MPa) |
0.5 |
| Maximum backwash pressure (MPa) |
0.25 |
| Membrane inner/outer diameter (mm) |
0.7/1.3 |
